Power supplies » Unify / Siemens » Telephone systems » HiPath 3000 / HiPath 500
IN: 110/220V; 60/50 HZ. OUT: -48V/5A; -5V/2A; +5V/20A; +12V/4.5A; +69V/0.3A
IN: 115/230V; 50-60HZ;400/392W. OUT: +5V/9A; -5V/1.1A; +12V/2.1A; -48V/3A; -60V/0.1A; +26V/3A; -12V/0.1A 60/75 VAC /60mA(200mA)
The power supply unit S30122-K5051-X100 is deployed with the Hicom 200.
IN:AC 110V/240V; 4A/2A 50,60 Hz; DC 320/380V 2A. OUT DC: 5.1V/12A; -5.1V/0.5A; +12V/1.9A; -12V/0.1A; -48V/2.5A; 380V/ 0.3A; AC: 60/75V, 4/8VA 20/25/50 HZ
115/230V, 4.4A/2.3A 50-60Hz OUT: AC: 75V/25 Hz/16W; +5,1V 4A; +5,1V 7A; -5.1V/0,6A; +12V/1,2A; -12V/0,1A; +26V/1.6A; -48V/1.3A
115/230V, 4.0A/2.2A 50-60Hz OUT: AC: 75V, 25 Hz, 16W; +5,1V 4A; +5,1V 7A; -5.1V/0,6A; +12V/1,2A; -12V/0,05A; +26V/1.6A; -48V/1.3A
IN: 115/230V, 3.8A/1.9A 50-60HZOUT: AC: 380V, 0.2 A; +5.1V 12A; +5.1V 3A; -5V/0.5A; +12V/1.9A; -12V/0.1A; -48V/2.5A; -48V/0.25A
Power supply for Hicom 125. IN: 380V 0,2A, -48V 6A. OUT DC: +53,3/55V 1,2A; 320V 275W
IN;115/230V; 3/1,8A; 50/60 HZOUT AC: 60/75 VAC,20/25 HZ 8W; DC: +5,1V/3A; +5,1V/7A; -5,1V/0,6A; +12V/1,2A; -48V/2A; -12V/0,1A

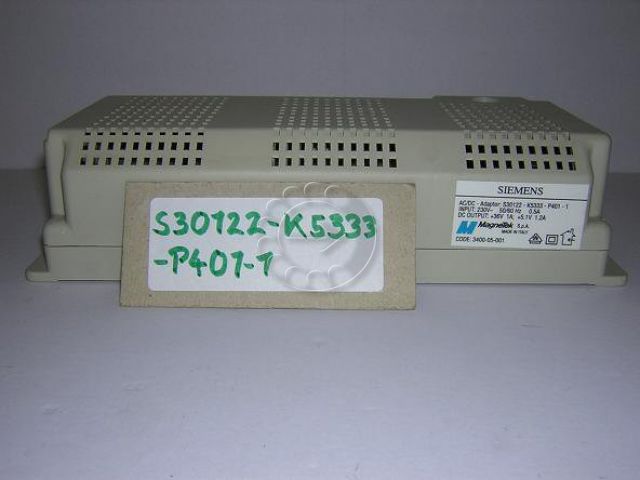

power supply for Hicom 116 expansion stage 2/3/4. IN:230V/0.5A / 50/60HZ. OUT: +36V/1A; +5.1V/1.2A
Power supply for Hicom 112. IN: 98/264V 0.5/0.19A 50/60HZ. OUT: 5V/2A; -48V/420mA; 75VAC 20HZ/4VA
The PSU2 power supply S30122-K5449-X312 supplies the Hicom 118 with the following required voltage 5V DC, -48V DC and the call-voltage of 75Veff with 25Hz.

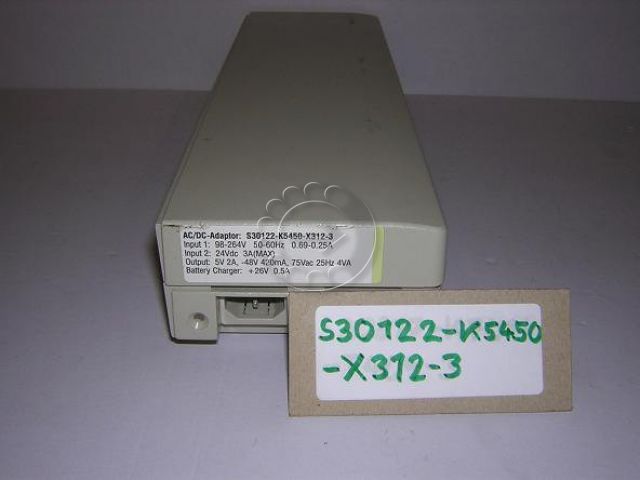

Power supply for Hicom 112. IN: 98/264V 0.5/0.19A 50/60HZ 24VDC/3A OUT: 5V/2A; -48V/420mA; 75VAC 25HZ/4VA
Power supply for Hicom 118. IN: 98/264V 1.37-0.51A 50-60HZ +24VAC/4A. OUT: 5V/2.5A; -48V/1.1A; 75VAC 25HZ/8VA
Power supply for Hicom 118. IN: 98/264V 1.37-0.51A 50-60HZ +24VAC/4A. OUT: 5V/2.5A; -48V/1.1A; 75VAC 25HZ/8VA
IN: 115/230V; 0,6/0,4A; 50-60HZOUT: +5,1V/3A; -48V/0,4A; 75VAC 20/25/50HZ, 4W. The power suply is used with the Hicom 150 OfficePoint and Hipath 3350.
Power Supply for Hipath 3000 Wallmount-PBX with battery manager
The PSUC power supply S30122-K5661-M provides Siemens telephone systems with the required following voltage of 5V DC, -48V DC and the call-voltage of 75Veff .
Power supply for Hicom 150E Office One, Hipath 3150 and HiPath 3250.
Power supply for Hicom 116.
IN: 115-230VAC 5,4-2,7A 50/60HZOUT: +5,1V/12A; -5,1V/0,5A; -55,2V/3Amax (75VAC 0,06A)
IN: 115-230VAC 5,4-2,7A 50/60HZOUT: +5,1V/12A; -5,1V/0,5A; -55,2V/3Amax (75VAC 0,06A)
Power Supply UPSC-DR for HiPath 3300 and HiPath 3500
Power Supply for HiPath 3800 and AP 3700 IP

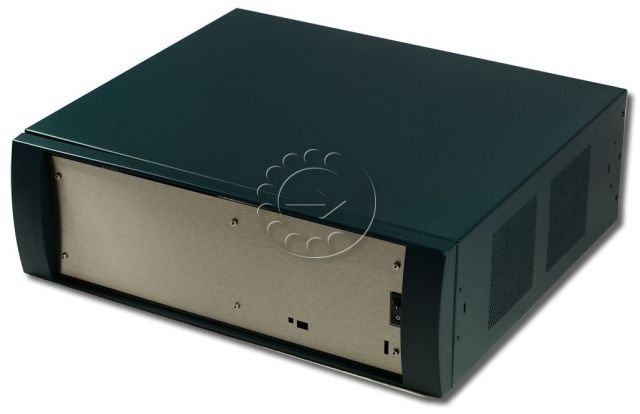

The Power Box PB3000 is a compatible new-generation line of product fort he extension box EBR. Not applicable to the HiPath 3700 and HiPath 3750.

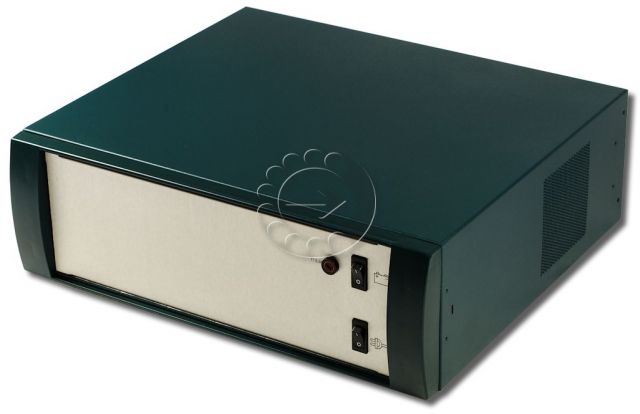

The extension box EBR is intended for the use within a 19” shelf for the following systems; HiPath 3700, HiPath 3500 and HiPath 3300.
Die Erweiterungsbox EBR wird für die HiPath 3700, HiPath 3500 und HiPath 3300 innerhalb eines 19 Zoll Schrankes eingesetzt.
